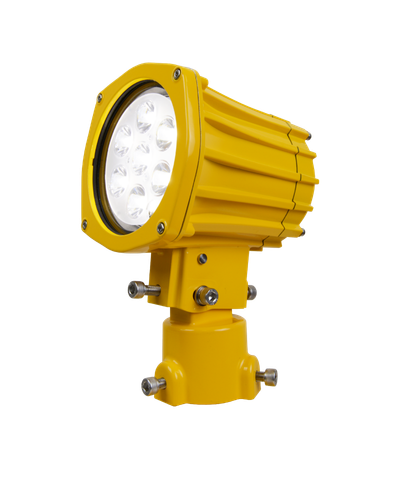

EUL-AP-LED
LED Elevated Approach Centerline/Crossbar Light
Manufactured by Airsafe.
The EUL-AP-LED is a LED elevated approach centerline and crossbar light designed for airport approach lighting systems up to CAT III, in compliance with ICAO Figure A2-1. Built on a high-strength aluminium alloy body with excellent thermal dissipation and a reduced-height profile to minimise jet blast impact, it delivers a steady white beam with saturated LED colour at all brightness levels.
The LED light source provides a comprehensive lifespan of not less than 100,000 hours with light attenuation below 30%, and a minimum of 60,000 hours at maximum brightness. Fully compatible with existing series circuits and 45W isolation transformers, the EUL-AP-LED is a direct upgrade path from conventional halogen approach fixtures.
Aplicattion / Use
Elevated approach centerline/crossbar light for airports CAT I, II y III, compliance to ICAO Fig A2-1.
Compliance with standards
- ICAO Annex 14, Vol I
- FAA AC 150/5345-46
- EB 67 D
- IEC-TS 61827
- EASA CS-ADR-DSN
- STANAG 3316
- AENA PPT-015_06-12
TECHNICAL SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Product code | EUL-AP-LED |
| Type | LED elevated approach centerline/crossbar light |
| Application | Approach centerline and crossbar — CAT I, II & III |
| ICAO reference | Figure A2-1 |
| Power supply | 2.8A to 6.6A series circuit |
| Light source | LED |
| Beam colour | White |
| LED lifespan | ≥ 100,000 h (light attenuation < 30%) |
| Avg. life at max brightness | ≥ 60,000 h |
| Consumption | ≤ 36 VA |
| Power factor | > 0.95 |
| Dimming regulation | FAA EB67D (halogen-equivalent output) |
| Ingress protection | IP67 |
| Body material | High-strength aluminium alloy, anti-corrosion treatment |
| Hardware | Stainless steel |
| Diffuser | Glass, high temperature and abrasion resistance |
| Thermal management | Integrated, finned aluminium body |
| Surge protection | Integrated |
| Monitoring | Optional «Fail Open» device |
| Isolation transformer | 45W |
| Lamp fault detection | Optional (order code M) |
| Mounting | Extension pole, 12″ deep base, approach mast |
